6ES7314-6EH04-0AB0 SIEMENS CPU 314C-2PN/DP Compact CPU

SIEMENS 6ES7314-6EH04-0AB0 CPU 314C-2PN/DP Compact CPU:

SIMATIC S7-300, CPU 314C-2PN/DP Compact CPU with 192 KB work memory, 24 DI/16 DO, 4 AI, 2 AO, 1 Pt100, 4 high-speed counters (60 kHz), 1st interface MPI/DP 12 Mbit/s, 2nd interface Ethernet PROFINET, with 2-port switch, Integr. power supply 24 V DC, Front connector (2x 40-pole) and Micro Memory Card required.

Technical Specifications:

1. General Information

Model: 6ES7314-6EH04-0AB0

Series: SIMATIC S7-300

Function: Programmable Logic Controller (PLC) Module

Application: Industrial automation, providing core control capabilities for complex automation tasks.

2. Technical Specifications

Processor: High-performance CPU capable of handling complex operations and real-time data processing.

Memory:

Work Memory: 192 KB

Data Backup: Supports battery backup for data retention during power outages.

I/O Configuration:

Digital Inputs: 24

Digital Outputs: 16

Analog Inputs: 4

Analog Outputs: 2

Fast Counters: 4 (60 kHz)

Temperature Sensor (PT100): 1

3. Communication Interfaces

Profibus DP: Supports high-speed communication with a speed of 12 Mbit/s.

Profinet: Integrated Ethernet interface for network communication.

MPI/DP Interface: Standard communication interface for S7-300 series PLCs.

4. Physical Specifications

Dimensions: Compact design suitable for modular installation.

Mounting: DIN rail mounting for easy integration into control cabinets.

Weight: Lightweight and compact for space-saving installations.

Our Services:

1, All our products are new and original, and of good quality.

2, Our prices are very competitive.

3, We have a large quantity in stock, so we could help the customers to get the components which are difficult to get.

4, All inquiries will be valued and will reply in 24.

omron module

omron plc module

omron io module

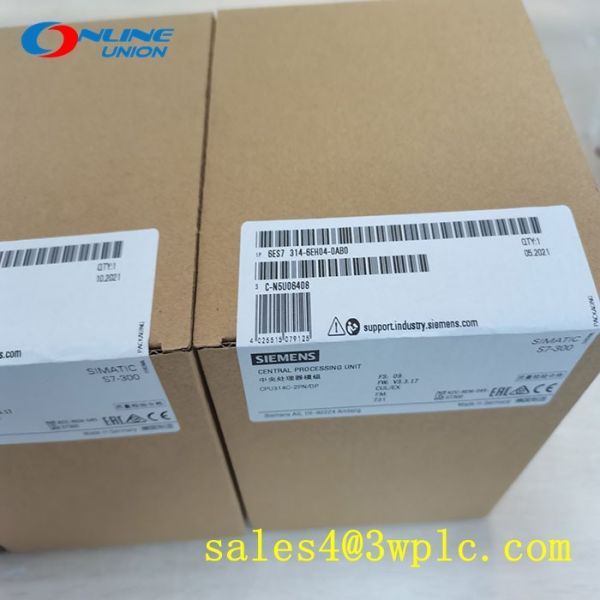

6ES7314-6EH04-0AB0 SIEMENS CPU 314C-2PN/DP Compact CPU Images
